Hyperparameter Tuning with Optuna#

OpenSTEF integrates with Optuna for Bayesian hyperparameter optimization. Every forecaster in OpenSTEF declares sensible search bounds on its hyperparameters — you just choose which ones to activate for tuning.

What you’ll learn:

  • Why models ship with built-in search spaces

  • How to activate, deactivate, and customize tunable parameters

  • How to change the optimization metric (e.g. rCRPS for probabilistic scoring)

  • How to compare an untuned baseline against the tuned model

Note

This tutorial runs only 5 trials for fast execution. Increase n_trials for production use.

Key API references: HyperparameterTuner · XGBoostHyperParams · FloatRange / IntRange

Load the dataset#

from datetime import datetime, timedelta

from openstef_core.testing import load_liander_dataset
from openstef_core.types import LeadTime, Q

dataset = load_liander_dataset()

train_start = datetime.fromisoformat("2024-03-01T00:00:00Z")
train_end = train_start + timedelta(days=45)
forecast_end = train_end + timedelta(days=7)

train_dataset = dataset.filter_by_range(start=train_start, end=train_end)
predict_dataset = dataset.filter_by_range(
    start=train_end - timedelta(days=14),
    end=forecast_end,
)

print(f"Training:  {train_dataset.data.shape[0]:,} rows")
print(f"Predict:   {predict_dataset.data.shape[0]:,} rows")

Training:  4,320 rows
Predict:   2,016 rows

Understanding built-in search spaces#

Each forecaster’s HyperParams class uses Python’s Annotated type hints to declare valid search bounds on every parameter. For example, XGBoostHyperParams defines:

n_estimators: Annotated[int, IntRange(50, 500)] = 100
learning_rate: Annotated[float, FloatRange(0.01, 0.5, log=True)] = 0.3
max_depth: Annotated[int, IntRange(1, 15)] = 6
subsample: Annotated[float, FloatRange(0.5, 1.0)] = 1.0

These ranges define where Optuna can search, but tuning is not active by default. The tune=True flag explicitly activates each parameter. This design means you always get sensible bounds without accidentally tuning everything.

Let’s see the default search space — with nothing activated:

from openstef_core.mixins.param_ranges import FloatRange, IntRange
from openstef_models.models.forecasting.xgboost_forecaster import XGBoostHyperParams

default_hp = XGBoostHyperParams()
default_space = default_hp.get_search_space()
print(f"Default tunable parameters: {len(default_space)}")
print("(All parameters use their fixed defaults until you opt in with tune=True)")

Default tunable parameters: 0
(All parameters use their fixed defaults until you opt in with tune=True)

Customizing the search space#

To activate tuning on a parameter, pass a range with tune=True. You can also narrow or widen the bounds, or leave bounds as None to inherit the class-level defaults from the Annotated metadata.

Activate with custom bounds:

learning_rate=FloatRange(0.01, 0.3, log=True, tune=True)

Activate with default bounds (inherits from Annotated metadata):

subsample=FloatRange(tune=True)

Keep a parameter fixed (don’t pass a range — just a plain value or omit it):

max_depth=6  # fixed, not tuned

Let’s configure XGBoost with 4 tunable parameters and keep reg_alpha fixed at a known-good value:

from openstef_models.presets import ForecastingWorkflowConfig, create_forecasting_workflow

config = ForecastingWorkflowConfig(
    model_id="tuning_demo",
    model="xgboost",
    horizons=[LeadTime.from_string("PT36H")],
    quantiles=[Q(0.5), Q(0.1), Q(0.9)],
    target_column="load",
    temperature_column="temperature_2m",
    relative_humidity_column="relative_humidity_2m",
    wind_speed_column="wind_speed_10m",
    radiation_column="shortwave_radiation",
    pressure_column="surface_pressure",
    xgboost_hyperparams=XGBoostHyperParams(
        # Tuned — custom bounds
        learning_rate=FloatRange(0.01, 0.3, log=True, tune=True),  # pyright: ignore[reportCallIssue]
        n_estimators=IntRange(50, 300, tune=True),
        # Tuned — inherits class-level bounds [1, 15]
        max_depth=IntRange(tune=True),
        # Tuned — custom narrower bounds
        subsample=FloatRange(0.6, 1.0, tune=True),
        # Fixed — not tuned
        reg_alpha=0.1,
    ),
    mlflow_storage=None,
    verbosity=0,
)

space = config.xgboost_hyperparams.get_search_space()

print(f"Active search space ({len(space)} parameters):")
for name, param in space.items():
    if isinstance(param, (FloatRange, IntRange)):
        scale = " [log]" if param.log else ""
        print(f"  {name:20s}: {type(param).__name__}  [{param.low} — {param.high}]{scale}")

Active search space (4 parameters):
  n_estimators        : IntRange  [50 — 300]
  learning_rate       : FloatRange  [0.01 — 0.3] [log]
  max_depth           : IntRange  [1 — 15]
  subsample           : FloatRange  [0.6 — 1.0]

Changing the tuning metric#

By default, HyperparameterTuner optimizes R2 on the median quantile. For probabilistic forecasts, the relative Continuous Ranked Probability Score (rCRPS) is a better choice — it evaluates the full quantile distribution, not just the median.

To use rCRPS, add RCRPSProvider to the config’s evaluation_metrics and set metric_name="rCRPS" with direction="minimize" (lower is better):

from openstef_beam.evaluation.metric_providers import ObservedProbabilityProvider, R2Provider, RCRPSProvider

config_with_rcrps = config.model_copy(
    update={"evaluation_metrics": [R2Provider(), ObservedProbabilityProvider(), RCRPSProvider()]}
)

Train an untuned baseline#

Before tuning, let’s train a model with the default hyperparameters so we can measure the improvement.

baseline_config = config_with_rcrps.model_copy(
    update={
        "xgboost_hyperparams": XGBoostHyperParams(reg_alpha=0.1),
    }
)
baseline_workflow = create_forecasting_workflow(baseline_config)
baseline_result = baseline_workflow.fit(train_dataset)
baseline_forecast = baseline_workflow.predict(predict_dataset, forecast_start=train_end)

baseline_r2 = baseline_result.metrics_val.get_metric(quantile=Q(0.5), metric_name="R2")
baseline_rcrps = baseline_result.metrics_val.get_metric(quantile="global", metric_name="rCRPS")
print(f"Baseline R2:    {baseline_r2:.4f}")
print(f"Baseline rCRPS: {baseline_rcrps:.4f}")

Baseline R2:    0.7932
Baseline rCRPS: 0.0504

Run the Optuna study#

HyperparameterTuner.fit_with_tuning() runs the study and trains a final workflow using create_forecasting_workflow on the full training set with the best hyperparameters. The first trial always evaluates the default values so the search starts from a known baseline.

import optuna

from openstef_models.integrations.optuna import HyperparameterTuner

optuna.logging.set_verbosity(optuna.logging.WARNING)

tuner = HyperparameterTuner(
    config=config_with_rcrps,
    train_dataset=train_dataset,
    create_workflow=create_forecasting_workflow,
    target_quantile="global",
    metric_name="rCRPS",
    direction="minimize",
    n_trials=5,
    seed=42,
)
tuning_result = tuner.fit_with_tuning(show_progress_bar=False)

print(f"Trials completed: {len(tuning_result.study.trials)}")
print(f"Best rCRPS: {tuning_result.study.best_value:.4f}")
print(f"Best params: {tuning_result.study.best_params}")

Trials completed: 5
Best rCRPS: 0.0424
Best params: {'n_estimators': 200, 'learning_rate': 0.11114989443094977, 'max_depth': 1, 'subsample': 0.9879639408647978}

Inspect the best hyperparameters#

best_hp = tuning_result.best_config.xgboost_hyperparams
best_params = tuning_result.study.best_params

print("Final hyperparameters (tuned values marked):")
for field in type(best_hp).model_fields:
    value = getattr(best_hp, field)
    marker = " <- tuned" if field in best_params else ""
    print(f"  {field:20s}: {value}{marker}")

Final hyperparameters (tuned values marked):
  n_estimators        : 200 <- tuned
  learning_rate       : 0.11114989443094977 <- tuned
  max_depth           : 1 <- tuned
  min_child_weight    : 1
  gamma               : 0
  objective           : pinball_loss
  evaluation_metric   : mean_pinball_loss
  reg_alpha           : 0.1
  reg_lambda          : 1
  max_delta_step      : 0
  max_leaves          : 0
  grow_policy         : depthwise
  max_bin             : 256
  num_parallel_trees  : 1
  subsample           : 0.9879639408647978 <- tuned
  colsample_bytree    : 1.0
  colsample_bylevel   : 1.0
  colsample_bynode    : 1.0
  tree_method         : auto
  random_state        : 42
  early_stopping_rounds: None
  use_target_scaling  : True

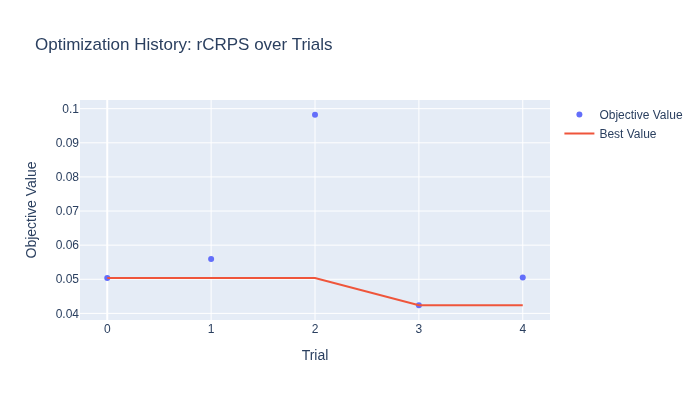

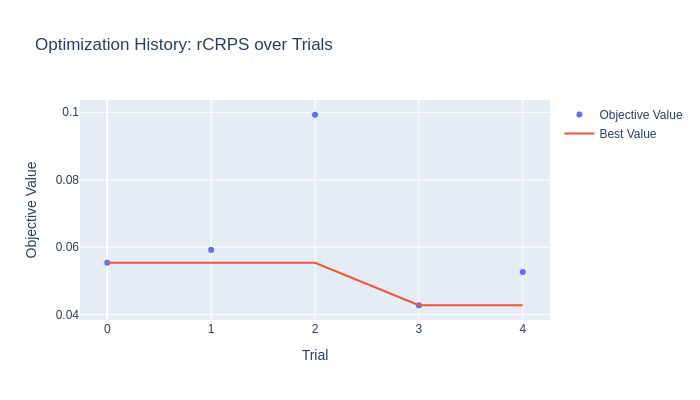

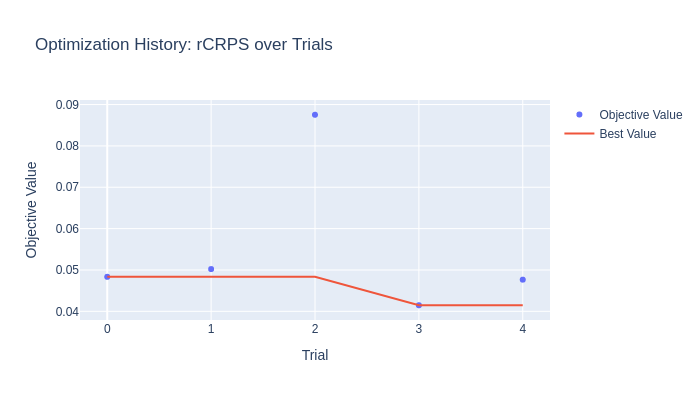

Visualize optimization history#

The optimization history shows how rCRPS decreased over trials. With only 5 trials results are noisy — increase n_trials for smoother convergence.

Hide code cell source


from optuna.visualization import plot_optimization_history

fig = plot_optimization_history(tuning_result.study)
fig.update_layout(title="Optimization History: rCRPS over Trials", height=400)
fig.show()
../_images/ea93b37acb3e8c4a9e878715eb6392d13ea1cc09bed823081f5ff98239d2b5dd.png

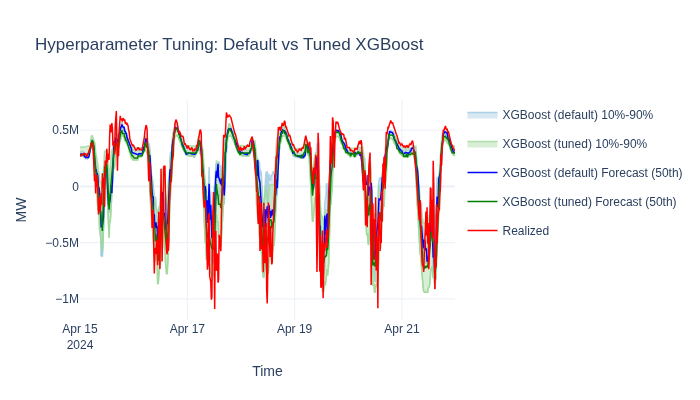

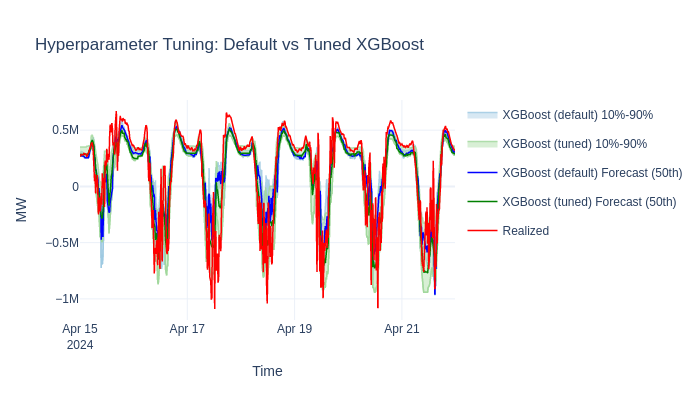

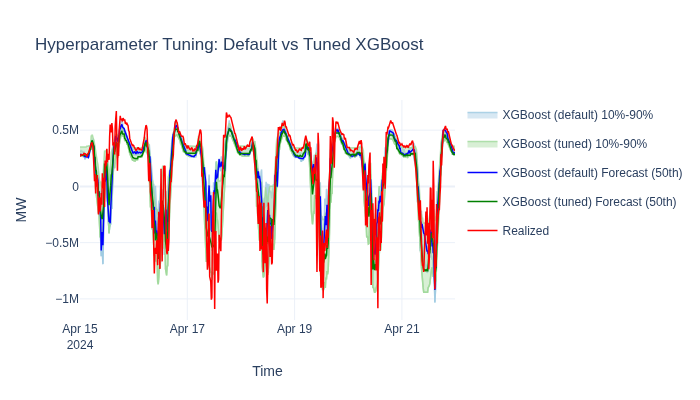

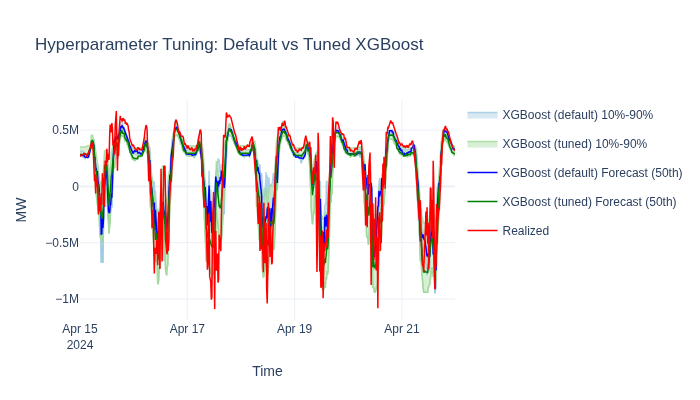

Compare: untuned vs tuned#

Plot both models on the same chart to visualize the improvement. Once you’re happy with the tuned parameters, run a Backtesting Quickstart to measure the gain over a realistic operational timeline.

Hide code cell source


from openstef_beam.analysis.plots import ForecastTimeSeriesPlotter

tuned_forecast = tuning_result.workflow.predict(predict_dataset, forecast_start=train_end)

fig = (
    ForecastTimeSeriesPlotter()
    .add_measurements(measurements=predict_dataset.data["load"].loc[train_end:])
    .add_model(
        model_name="XGBoost (default)",
        forecast=baseline_forecast.median_series,
        quantiles=baseline_forecast.quantiles_data,
    )
    .add_model(
        model_name="XGBoost (tuned)",
        forecast=tuned_forecast.median_series,
        quantiles=tuned_forecast.quantiles_data,
    )
    .plot()
)

fig.update_layout(
    title="Hyperparameter Tuning: Default vs Tuned XGBoost",
    xaxis_title="Time",
    yaxis_title="MW",
    height=400,
)
fig.show()
../_images/c49c5d82589a725f4db4743c8786abc2a6c8ba3a9b4985224df6a61716f08614.png
tuned_rcrps = tuning_result.study.best_value

print(f"{'Model':<20} {'rCRPS':>10}")
print(f"{'':-<20} {'':-^10}")
print(f"{'XGBoost (default)':<20} {baseline_rcrps:>10.4f}")
print(f"{'XGBoost (tuned)':<20} {tuned_rcrps:>10.4f}")
print(f"{'Improvement':<20} {baseline_rcrps - tuned_rcrps:>10.4f}")

Model                     rCRPS
-------------------- ----------
XGBoost (default)        0.0504
XGBoost (tuned)          0.0424
Improvement              0.0080
